Ultra series SentinelAIClearEdge

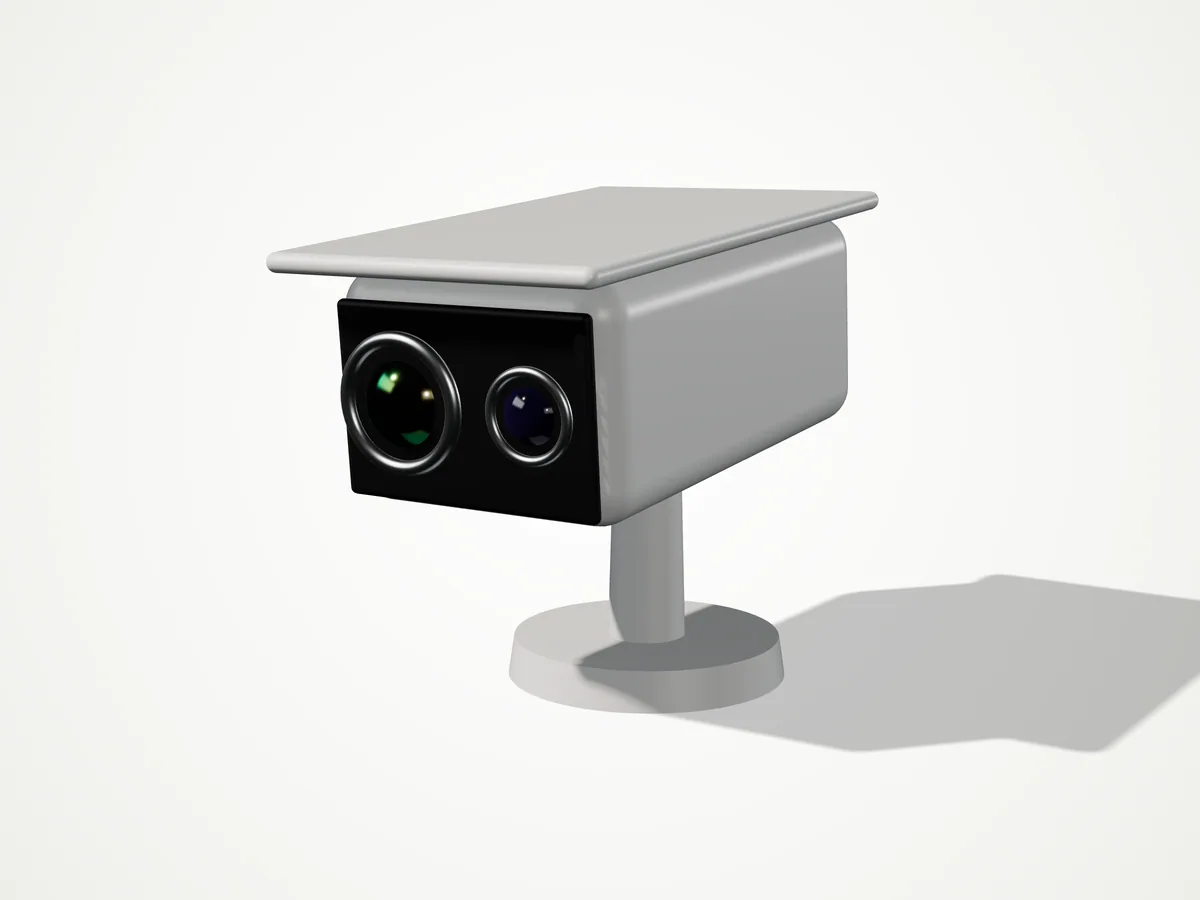

TH-B384-35
384 × 288 thermal bi-spectrum bullet
Detects a person at 400 m in fog or smoke with a 35 mm thermal lens.
- Resolution 4MP
- Lens 8mm
- Light 40m
- Detect people at 400 m
- 35 mm thermal lens
- Works in fog and smoke
- Temperature exception alarms
Overview
How far it sees
DORI distances at the widest lens: the range at which a person can be detected, observed, recognised or identified.
- Detect
- 114 m
- Observe
- 45 m
- Recognise
- 23 m
- Identify
- 11 m
Technologies inside
-
SentinelAI
Deep-learning models tell people and vehicles apart from rain, leaves and animals, so alerts mean something.
-
ClearEdge
Counting, heat maps and line crossing run on the camera itself, which keeps bandwidth and server load low.
On-device AI
- Perimeter protection
- Fire & smoke detection
Specifications
- Image sensor
- 1/1.8″ progressive-scan CMOS
- Max. resolution
- 2560 × 1440
- Min. illumination
- Colour: 0.005 lux @ F1.6, B/W: 0 lux with IR
- Shutter
- 1/3 s to 1/100,000 s
- WDR
- 140 dB
- Lens type
- Multi-lens
- Focal length
- 8 mm
- Horizontal FOV
- 48°
- Aperture
- F1.6
- Detect
- 114 m
- Observe
- 45 m
- Recognise
- 23 m
- Identify
- 11 m
- Supplemental light
- Infrared (850 nm)
- Range
- Up to 40 m
- Smart light control
- Yes, anti-overexposure
- Compression
- H.265, H.265+, H.264, MJPEG (sub-stream)
- Main stream
- 25 fps @ 2560 × 1440
- Bit rate
- 32 Kbps to 16 Mbps
- Protocols
- TCP/IP, HTTPS, RTSP, NTP, 802.1X, IPv6, SNMP, TLS 1.3
- API
- Open video interface (Profiles S, G, T), Dhonaadhi SDK
- Security
- Signed firmware, secure boot, encrypted storage, audit log
- Perimeter protection
- Yes
- Fire & smoke detection
- Yes
- Power
- PoE (802.3af), 12 V DC
- Operating temperature
- −30 °C to 60 °C
- Protection
- IP67, IK10
- Certifications
- CE, FCC, UL 62368-1, RoHS, EN 50131 (where applicable)
