Pro series ClearEdge

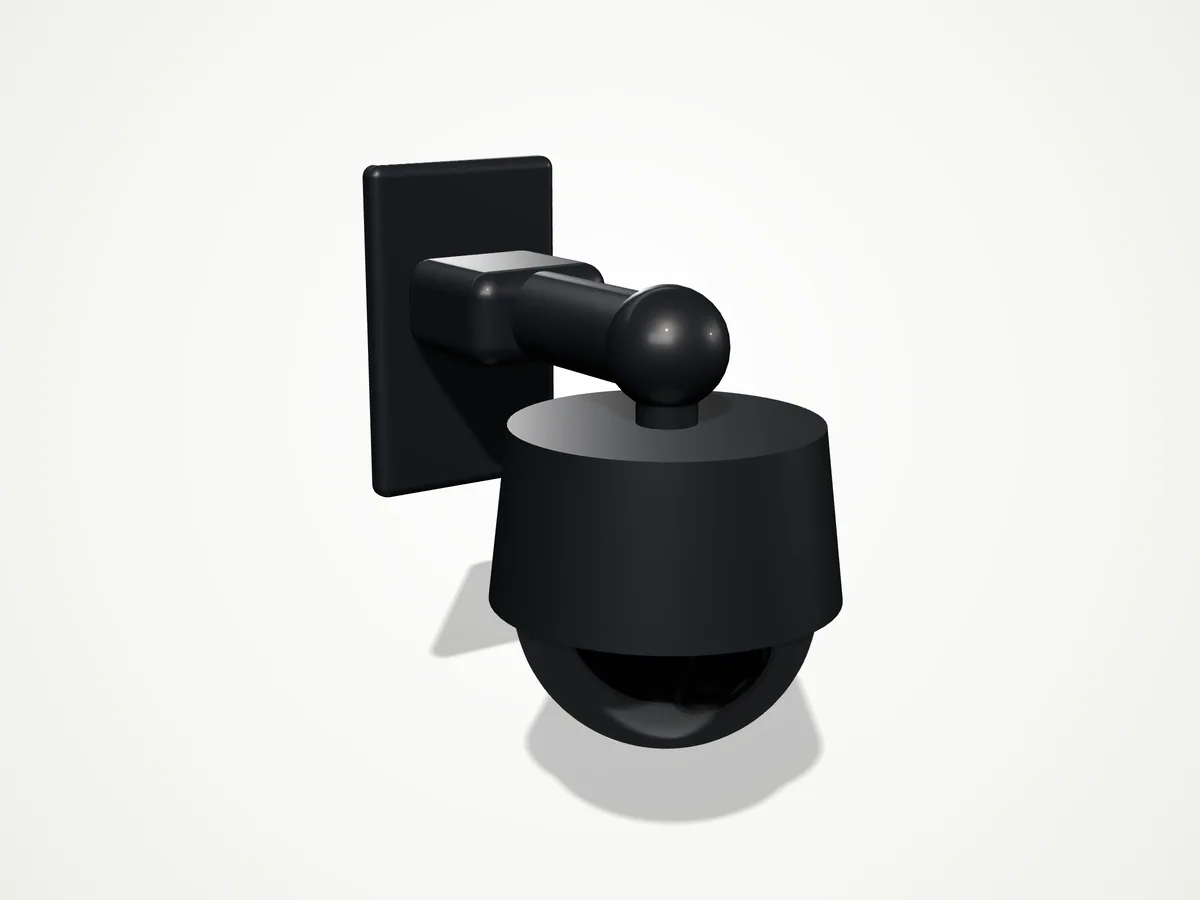

NP-2M-P15C
2 MP 15× compact PTZ
A graphite indoor PTZ for lobbies, atriums and retail floors.
- Resolution 2MP
- Zoom 15×
- Rating IP66
- 15× zoom
- Quiet pan/tilt motors
- Graphite finish
- Built-in microphone
Overview
How far it sees
DORI distances at the widest lens: the range at which a person can be detected, observed, recognised or identified.
- Detect
- 1029 m
- Observe
- 408 m
- Recognise
- 206 m
- Identify
- 103 m
Technologies inside
On-device AI
- People counting
Specifications
- Image sensor
- 1/2.8″ progressive-scan CMOS
- Max. resolution
- 1920 × 1080
- Min. illumination
- Colour: 0.005 lux @ F1.6, B/W: 0 lux with IR
- Shutter
- 1/3 s to 1/100,000 s
- WDR
- 120 dB
- Lens type
- Motorised varifocal
- Focal length
- 5–75 mm
- Horizontal FOV
- 4°–58°
- Aperture
- F1.6
- Optical zoom
- 15×
- Detect
- 1029 m
- Observe
- 408 m
- Recognise
- 206 m
- Identify
- 103 m
- Compression
- H.265, H.265+, H.264, MJPEG (sub-stream)
- Main stream
- 25 fps @ 1920 × 1080
- Bit rate
- 32 Kbps to 16 Mbps
- Audio
- Built-in mic
- Protocols
- TCP/IP, HTTPS, RTSP, NTP, 802.1X, IPv6, SNMP, TLS 1.3
- API
- Open video interface (Profiles S, G, T), Dhonaadhi SDK
- Security
- Signed firmware, secure boot, encrypted storage, audit log
- People counting
- Yes
- Power
- PoE (802.3af), 12 V DC
- Operating temperature
- −30 °C to 60 °C
- Protection
- IP66
- Certifications
- CE, FCC, UL 62368-1, RoHS, EN 50131 (where applicable)
