Pro series SentinelAIClearEdge
NP-4M-P32X

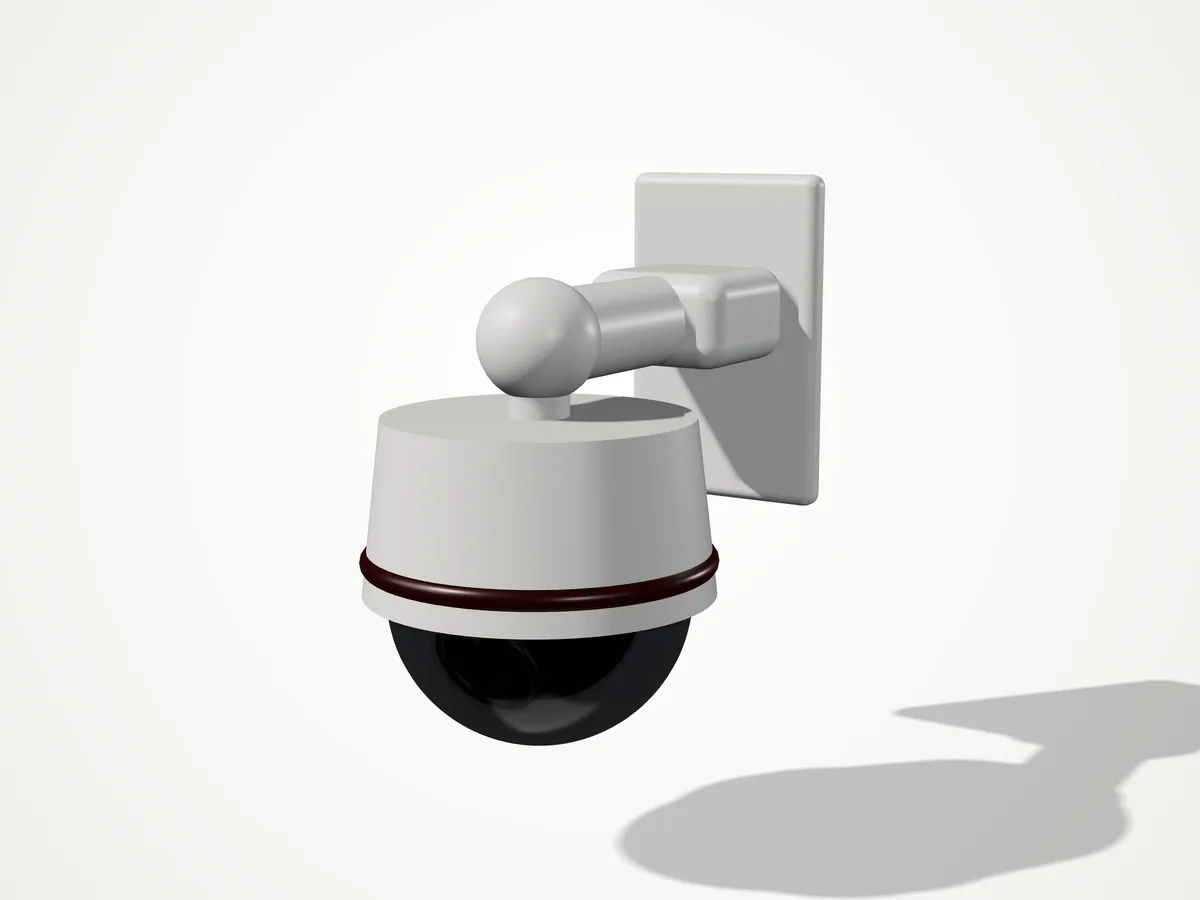

4 MP 32× auto-tracking speed dome
Detects a person at the fence and follows them automatically across the site.
- Resolution 4MP
- Zoom 32×
- Light 200m
- 32× zoom
- Auto-tracking
- 200 m infrared
- Wiper
- IK10
Overview
How far it sees
DORI distances at the widest lens: the range at which a person can be detected, observed, recognised or identified.
- Detect
- 2176 m
- Observe
- 863 m
- Recognise
- 435 m
- Identify
- 218 m
Technologies inside
-
SentinelAI
Deep-learning models tell people and vehicles apart from rain, leaves and animals, so alerts mean something.
-
ClearEdge
Counting, heat maps and line crossing run on the camera itself, which keeps bandwidth and server load low.
On-device AI
- Perimeter protection
- Face capture
Specifications
- Image sensor
- 1/1.8″ progressive-scan CMOS
- Max. resolution
- 2560 × 1440
- Min. illumination
- Colour: 0.005 lux @ F1.6, B/W: 0 lux with IR
- Shutter
- 1/3 s to 1/100,000 s
- WDR
- 120 dB
- Lens type
- Motorised varifocal
- Focal length
- 4.8–153 mm
- Horizontal FOV
- 3°–74°
- Aperture
- F1.6
- Optical zoom
- 32×
- Detect
- 2176 m
- Observe
- 863 m
- Recognise
- 435 m
- Identify
- 218 m
- Supplemental light
- Infrared (850 nm)
- Range
- Up to 200 m
- Smart light control
- Yes, anti-overexposure
- Compression
- H.265, H.265+, H.264, MJPEG (sub-stream)
- Main stream
- 25 fps @ 2560 × 1440
- Bit rate
- 32 Kbps to 16 Mbps
- Protocols
- TCP/IP, HTTPS, RTSP, NTP, 802.1X, IPv6, SNMP, TLS 1.3
- API
- Open video interface (Profiles S, G, T), Dhonaadhi SDK
- Security
- Signed firmware, secure boot, encrypted storage, audit log
- Perimeter protection
- Yes
- Face capture
- Yes
- Power
- PoE (802.3af), 24 V AC
- Operating temperature
- −30 °C to 60 °C
- Protection
- IP66, IK10
- Certifications
- CE, FCC, UL 62368-1, RoHS, EN 50131 (where applicable)
