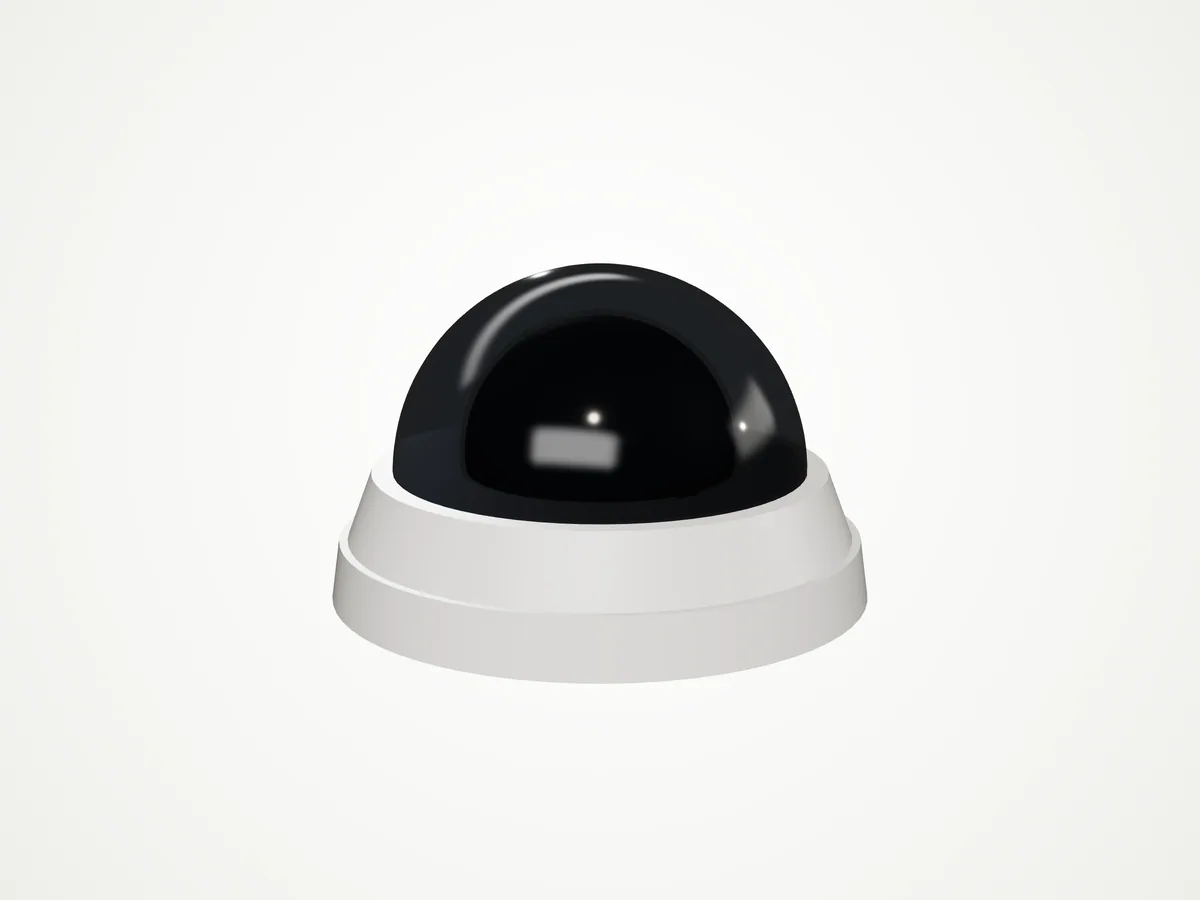

ND-2M-D28

2 MP vandal-resistant dome

A low-profile IK10 dome for corridors and stairwells where cameras get knocked.

Resolution 2MP
Lens 2.8mm
Light 30m

IK10 vandal resistance
30 m infrared
Low-profile housing
H.265+

Download datasheet Where to buy

Overview

How far it sees

DORI distances at the widest lens: the range at which a person can be detected, observed, recognised or identified.

Detect: 38 m
Observe: 15 m
Recognise: 8 m
Identify: 4 m

Technologies inside

ClearEdge

Counting, heat maps and line crossing run on the camera itself, which keeps bandwidth and server load low.

On-device AI

Perimeter protection

Specifications

Image sensor: 1/2.8″ progressive-scan CMOS
Max. resolution: 1920 × 1080
Min. illumination: Colour: 0.005 lux @ F1.6, B/W: 0 lux with IR
Shutter: 1/3 s to 1/100,000 s
WDR: 120 dB

Lens type: Fixed focal
Focal length: 2.8 mm
Horizontal FOV: 90°
Aperture: F1.6

Detect: 38 m
Observe: 15 m
Recognise: 8 m
Identify: 4 m

Supplemental light: Infrared (850 nm)
Range: Up to 30 m
Smart light control: Yes, anti-overexposure

Compression: H.265, H.265+, H.264, MJPEG (sub-stream)
Main stream: 25 fps @ 1920 × 1080
Bit rate: 32 Kbps to 16 Mbps

Protocols: TCP/IP, HTTPS, RTSP, NTP, 802.1X, IPv6, SNMP, TLS 1.3
API: Open video interface (Profiles S, G, T), Dhonaadhi SDK
Security: Signed firmware, secure boot, encrypted storage, audit log

Perimeter protection: Yes

Power: PoE (802.3af), 12 V DC
Operating temperature: −30 °C to 60 °C
Protection: IP67, IK10

Certifications: CE, FCC, UL 62368-1, RoHS, EN 50131 (where applicable)
