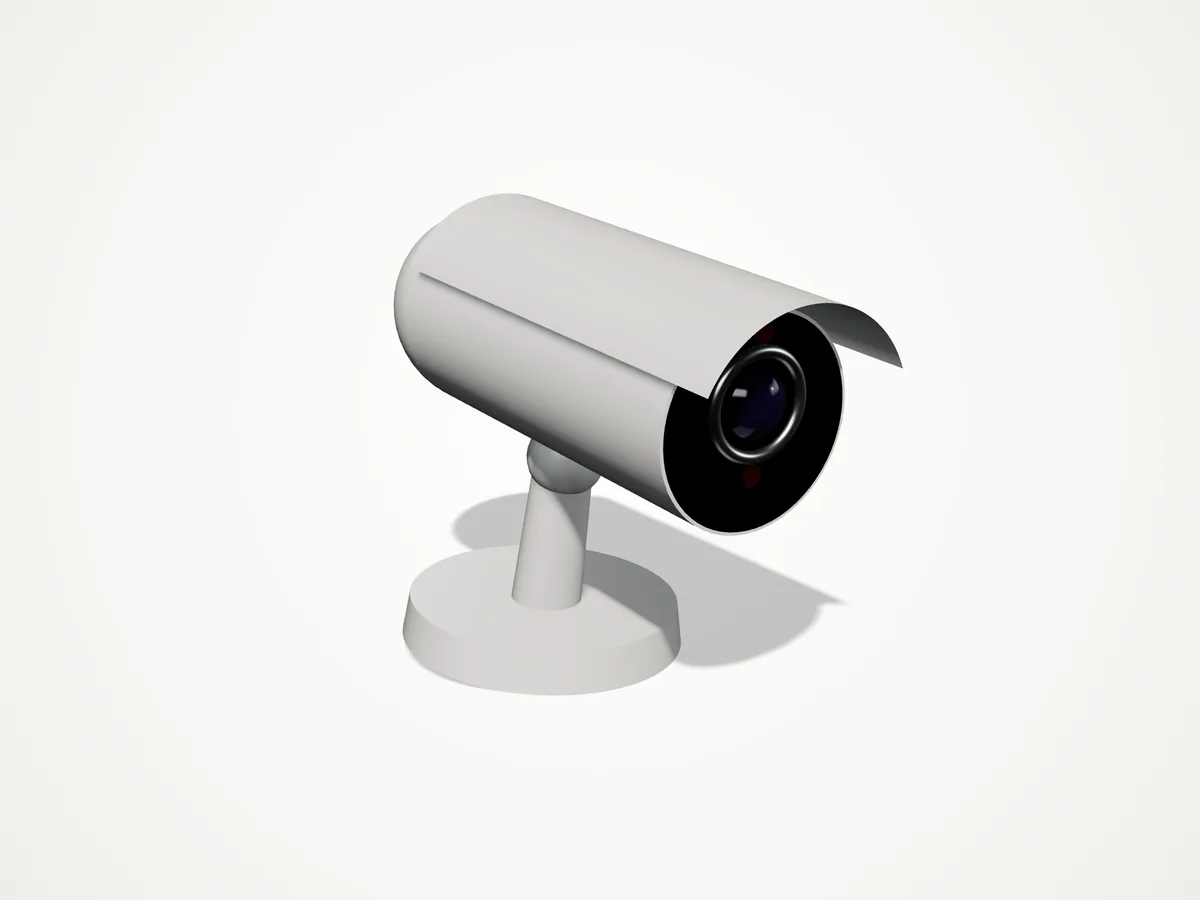

Value series ClearEdge
NB-2M-B28
2 MP fixed bullet camera
An affordable 1080p bullet for small shops and homes, with 30 m of infrared and motion alerts that ignore leaves.
- Resolution 2MP
- Lens 2.8mm
- Light 30m
- 1080p at 25 fps
- 30 m infrared
- H.265+ halves storage
- IP67 weatherproof
- Human and vehicle filtering
Orderable models 2
- NB-2M-B28 (2.8 mm)
- NB-2M-B28 (4 mm)
Overview
How far it sees
DORI distances at the widest lens: the range at which a person can be detected, observed, recognised or identified.
- Detect
- 38 m
- Observe
- 15 m
- Recognise
- 8 m
- Identify
- 4 m
Technologies inside
On-device AI
- Perimeter protection
Specifications
- Image sensor
- 1/2.8″ progressive-scan CMOS
- Max. resolution
- 1920 × 1080
- Min. illumination
- Colour: 0.005 lux @ F1.6, B/W: 0 lux with IR
- Shutter
- 1/3 s to 1/100,000 s
- WDR
- 120 dB
- Lens type
- Fixed focal
- Focal length
- 2.8 mm
- Horizontal FOV
- 90°
- Aperture
- F1.6
- Detect
- 38 m
- Observe
- 15 m
- Recognise
- 8 m
- Identify
- 4 m
- Supplemental light
- Infrared (850 nm)
- Range
- Up to 30 m
- Smart light control
- Yes, anti-overexposure
- Compression
- H.265, H.265+, H.264, MJPEG (sub-stream)
- Main stream
- 25 fps @ 1920 × 1080
- Bit rate
- 32 Kbps to 16 Mbps
- Protocols
- TCP/IP, HTTPS, RTSP, NTP, 802.1X, IPv6, SNMP, TLS 1.3
- API
- Open video interface (Profiles S, G, T), Dhonaadhi SDK
- Security
- Signed firmware, secure boot, encrypted storage, audit log
- Perimeter protection
- Yes
- Power
- PoE (802.3af), 12 V DC
- Operating temperature
- −30 °C to 60 °C
- Protection
- IP67
- Certifications
- CE, FCC, UL 62368-1, RoHS, EN 50131 (where applicable)
