New Pro series LumaNightSentinelAI
NB-4M-B28L

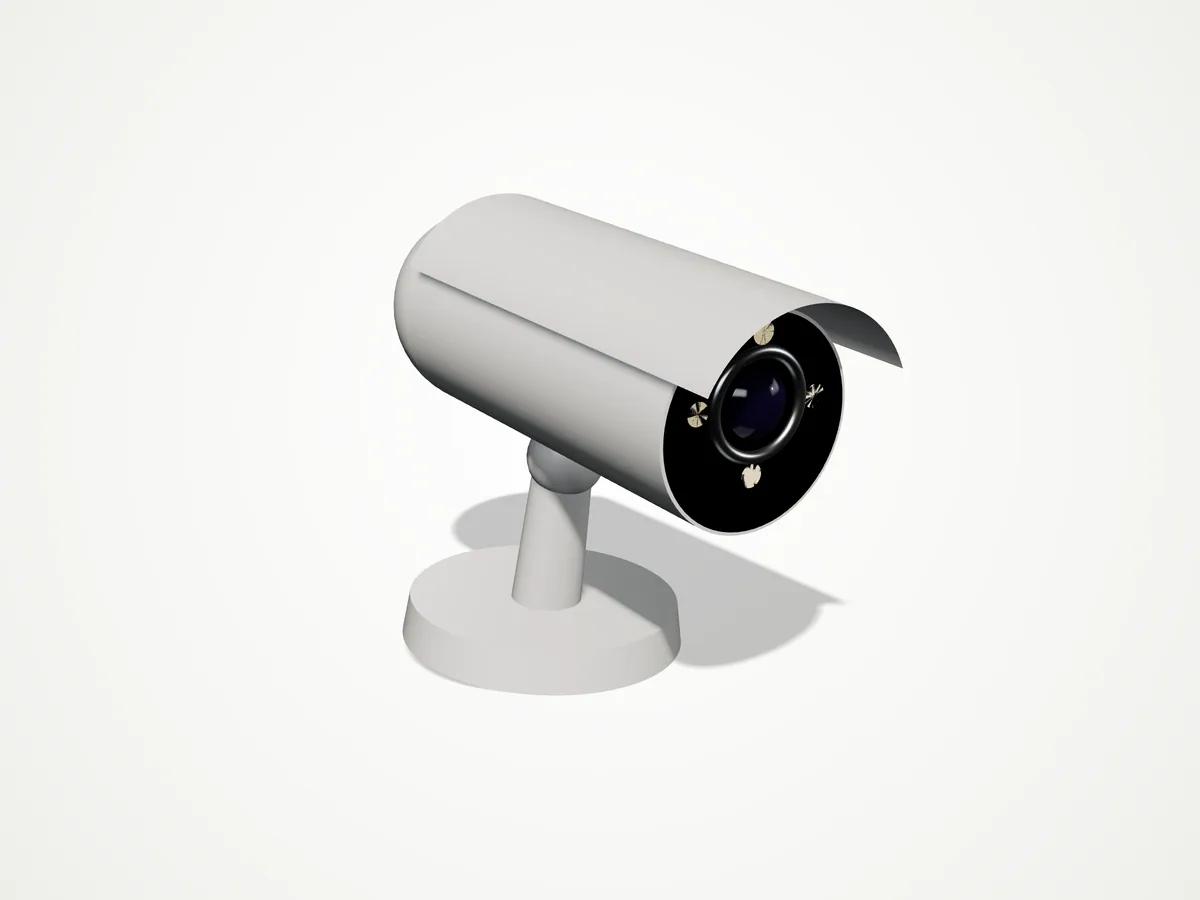

4 MP LumaNight fixed bullet camera
Full-colour night video at 0.0005 lux with a warm-white light that only switches on when a person or vehicle appears.
- Resolution 4MP
- Lens 2.8mm
- Light 40m
- Colour at 0.0005 lux with F1.0 lens
- Smart white light, 40 m
- SentinelAI human/vehicle detection
- Built-in microphone
- 130 dB WDR
Orderable models 3
- NB-4M-B28L (2.8 mm)
- NB-4M-B28L (4 mm)
- NB-4M-B28L (6 mm)
Overview
How far it sees
DORI distances at the widest lens: the range at which a person can be detected, observed, recognised or identified.
- Detect
- 40 m
- Observe
- 16 m
- Recognise
- 8 m
- Identify
- 4 m
Technologies inside
-
LumaNight
An F1.0 aperture and a back-illuminated sensor keep night footage in full colour, so a red car is still red at 2 a.m.
-
SentinelAI
Deep-learning models tell people and vehicles apart from rain, leaves and animals, so alerts mean something.
On-device AI
- Perimeter protection
Specifications
- Image sensor
- 1/1.8″ progressive-scan CMOS
- Max. resolution
- 2560 × 1440
- Min. illumination
- Colour: 0.0005 lux @ F1.0
- Shutter
- 1/3 s to 1/100,000 s
- WDR
- 120 dB
- Lens type
- Fixed focal
- Focal length
- 2.8 mm
- Horizontal FOV
- 104°
- Aperture
- F1.0
- Detect
- 40 m
- Observe
- 16 m
- Recognise
- 8 m
- Identify
- 4 m
- Supplemental light
- Warm white LED
- Range
- Up to 40 m
- Smart light control
- Yes, anti-overexposure
- Compression
- H.265, H.265+, H.264, MJPEG (sub-stream)
- Main stream
- 25 fps @ 2560 × 1440
- Bit rate
- 32 Kbps to 16 Mbps
- Audio
- Built-in mic
- Protocols
- TCP/IP, HTTPS, RTSP, NTP, 802.1X, IPv6, SNMP, TLS 1.3
- API
- Open video interface (Profiles S, G, T), Dhonaadhi SDK
- Security
- Signed firmware, secure boot, encrypted storage, audit log
- Perimeter protection
- Yes
- Power
- PoE (802.3af), 12 V DC
- Operating temperature
- −30 °C to 60 °C
- Protection
- IP67
- Certifications
- CE, FCC, UL 62368-1, RoHS, EN 50131 (where applicable)
