New PanoSight series PanoSightClearEdge
NF-12M-F16

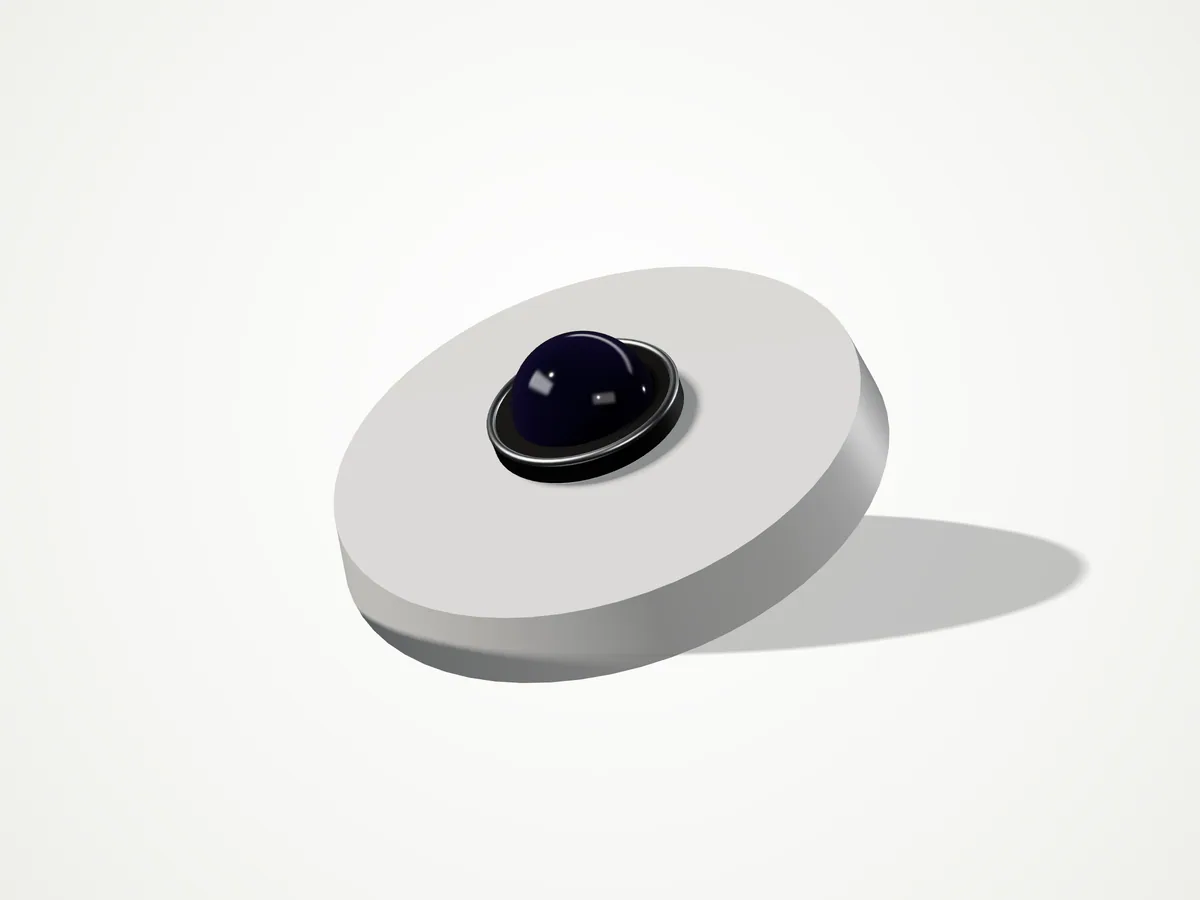

12 MP 360° fisheye camera
Twice the pixels of the NF-6M for larger floors such as warehouses and atriums.
- Resolution 12MP
- Lens 1.6mm
- Light 15m
- 12 MP 360° image
- IK10
- Heat map and queues
- 15 m infrared
Overview
How far it sees
DORI distances at the widest lens: the range at which a person can be detected, observed, recognised or identified.
- Detect
- 36 m
- Observe
- 14 m
- Recognise
- 7 m
- Identify
- 4 m
Technologies inside
-
PanoSight
Multiple sensors stitched in real time give one seamless wide image instead of three overlapping views.
-
ClearEdge
Counting, heat maps and line crossing run on the camera itself, which keeps bandwidth and server load low.
On-device AI
- Heat map
- People counting
- Queue management
Specifications
- Image sensor
- 1/1.8″ progressive-scan CMOS
- Max. resolution
- 4000 × 3000
- Min. illumination
- Colour: 0.005 lux @ F1.6, B/W: 0 lux with IR
- Shutter
- 1/3 s to 1/100,000 s
- WDR
- 120 dB
- Lens type
- Fixed focal
- Focal length
- 1.6 mm
- Horizontal FOV
- 132°
- Aperture
- F1.6
- Detect
- 36 m
- Observe
- 14 m
- Recognise
- 7 m
- Identify
- 4 m
- Supplemental light
- Infrared (850 nm)
- Range
- Up to 15 m
- Smart light control
- Yes, anti-overexposure
- Compression
- H.265, H.265+, H.264, MJPEG (sub-stream)
- Main stream
- 20 fps @ 4000 × 3000
- Bit rate
- 32 Kbps to 16 Mbps
- Audio
- Built-in mic
- Protocols
- TCP/IP, HTTPS, RTSP, NTP, 802.1X, IPv6, SNMP, TLS 1.3
- API
- Open video interface (Profiles S, G, T), Dhonaadhi SDK
- Security
- Signed firmware, secure boot, encrypted storage, audit log
- Heat map
- Yes
- People counting
- Yes
- Queue management
- Yes
- Power
- PoE (802.3af), 12 V DC
- Operating temperature
- −30 °C to 60 °C
- Protection
- IP66, IK10
- Certifications
- CE, FCC, UL 62368-1, RoHS, EN 50131 (where applicable)
