New Sentinel series SentinelAILumaNight
NP-4M-P45X

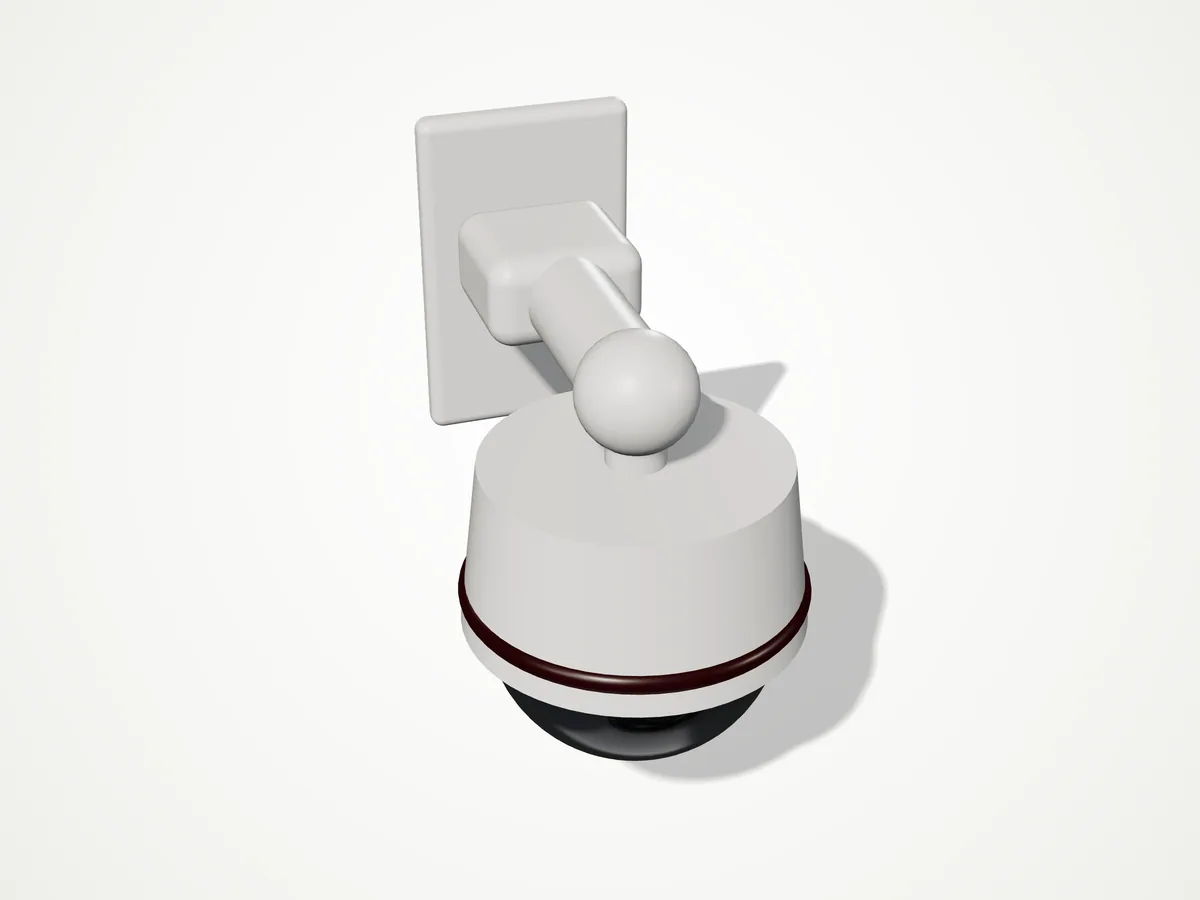

4 MP 45× Sentinel speed dome
Ports, borders and highways: 45× zoom, 250 m infrared and plate reading at distance.
- Resolution 4MP
- Zoom 45×
- Light 250m
- 45× optical zoom
- 250 m infrared
- Plate reading at distance
- Colour at night
- IP67
Overview
How far it sees
DORI distances at the widest lens: the range at which a person can be detected, observed, recognised or identified.
- Detect
- 3840 m
- Observe
- 1524 m
- Recognise
- 768 m
- Identify
- 384 m
Technologies inside
-
SentinelAI
Deep-learning models tell people and vehicles apart from rain, leaves and animals, so alerts mean something.
-
LumaNight
An F1.0 aperture and a back-illuminated sensor keep night footage in full colour, so a red car is still red at 2 a.m.
On-device AI
- Perimeter protection
- Number plate recognition
- Face capture
Specifications
- Image sensor
- 1/1.8″ progressive-scan CMOS
- Max. resolution
- 2560 × 1440
- Min. illumination
- Colour: 0.0005 lux @ F1.0
- Shutter
- 1/3 s to 1/100,000 s
- WDR
- 140 dB
- Lens type
- Motorised varifocal
- Focal length
- 6–270 mm
- Horizontal FOV
- 2°–62°
- Aperture
- F1.0
- Optical zoom
- 45×
- Detect
- 3840 m
- Observe
- 1524 m
- Recognise
- 768 m
- Identify
- 384 m
- Supplemental light
- Infrared (850 nm)
- Range
- Up to 250 m
- Smart light control
- Yes, anti-overexposure
- Compression
- H.265, H.265+, H.264, MJPEG (sub-stream)
- Main stream
- 25 fps @ 2560 × 1440
- Bit rate
- 32 Kbps to 16 Mbps
- Protocols
- TCP/IP, HTTPS, RTSP, NTP, 802.1X, IPv6, SNMP, TLS 1.3
- API
- Open video interface (Profiles S, G, T), Dhonaadhi SDK
- Security
- Signed firmware, secure boot, encrypted storage, audit log
- Perimeter protection
- Yes
- Number plate recognition
- Yes
- Face capture
- Yes
- Power
- PoE (802.3af), 24 V AC
- Operating temperature
- −30 °C to 60 °C
- Protection
- IP67, IK10
- Certifications
- CE, FCC, UL 62368-1, RoHS, EN 50131 (where applicable)
