Pro series ClearEdge
NX-4M-BX

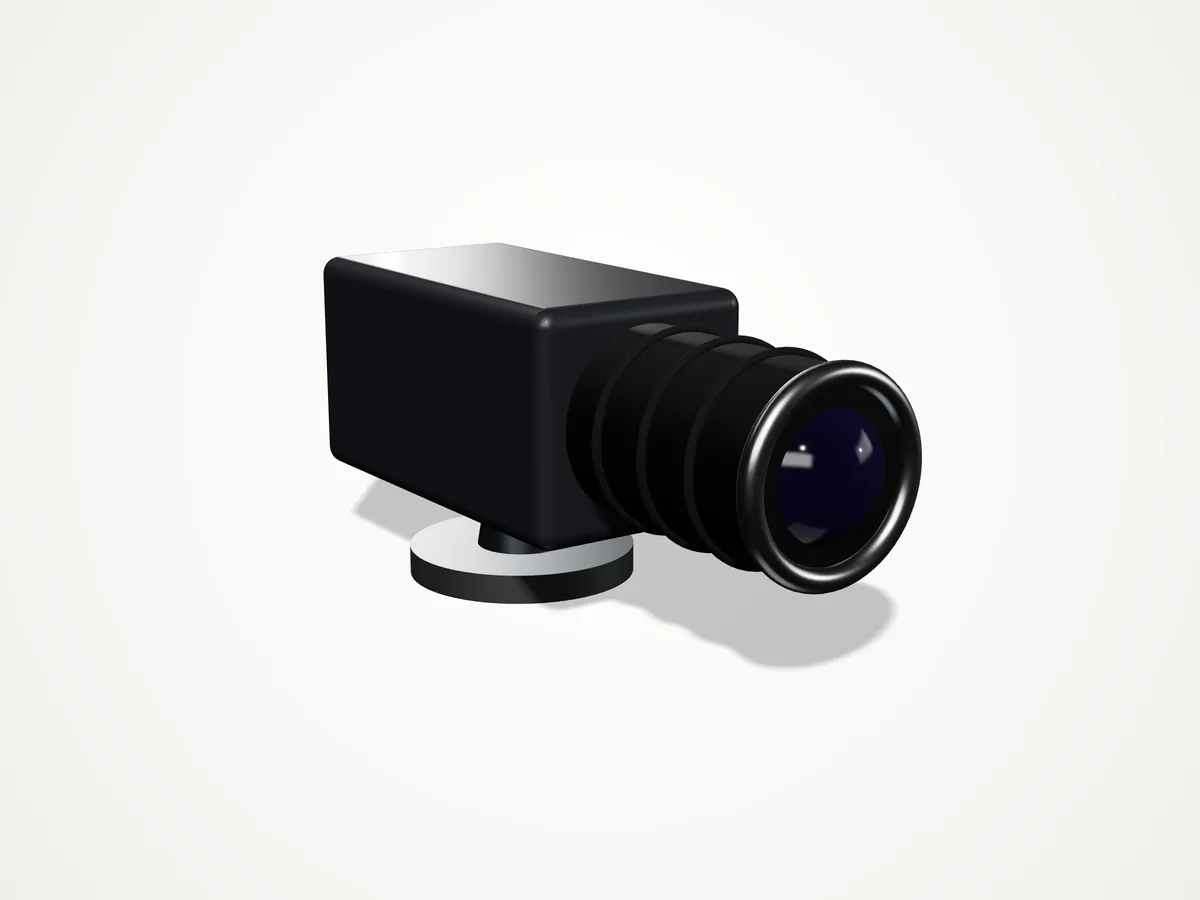

4 MP box camera body
A C/CS-mount body for specialist lenses, from long-range plate reading to wide lobby views.
- Resolution 4MP
- Lens 3.8–16mm
- C/CS lens mount
- Plate recognition
- 12 V DC, 24 V AC or PoE
- Alarm and audio I/O
Overview
How far it sees
DORI distances at the widest lens: the range at which a person can be detected, observed, recognised or identified.
- Detect
- 228 m
- Observe
- 90 m
- Recognise
- 46 m
- Identify
- 23 m
Technologies inside
On-device AI
- Number plate recognition
- Face capture
Specifications
- Image sensor
- 1/1.8″ progressive-scan CMOS
- Max. resolution
- 2560 × 1440
- Min. illumination
- Colour: 0.005 lux @ F1.6, B/W: 0 lux with IR
- Shutter
- 1/3 s to 1/100,000 s
- WDR
- 120 dB
- Lens type
- Manual varifocal
- Focal length
- 3.8–16 mm
- Horizontal FOV
- 25°–87°
- Aperture
- F1.6
- Detect
- 228 m
- Observe
- 90 m
- Recognise
- 46 m
- Identify
- 23 m
- Compression
- H.265, H.265+, H.264, MJPEG (sub-stream)
- Main stream
- 25 fps @ 2560 × 1440
- Bit rate
- 32 Kbps to 16 Mbps
- Protocols
- TCP/IP, HTTPS, RTSP, NTP, 802.1X, IPv6, SNMP, TLS 1.3
- API
- Open video interface (Profiles S, G, T), Dhonaadhi SDK
- Security
- Signed firmware, secure boot, encrypted storage, audit log
- Number plate recognition
- Yes
- Face capture
- Yes
- Power
- PoE (802.3af), 12 V DC, 24 V AC
- Operating temperature
- −10 °C to 50 °C
- Certifications
- CE, FCC, UL 62368-1, RoHS, EN 50131 (where applicable)
