Rugged series ClearEdgeLumaNight

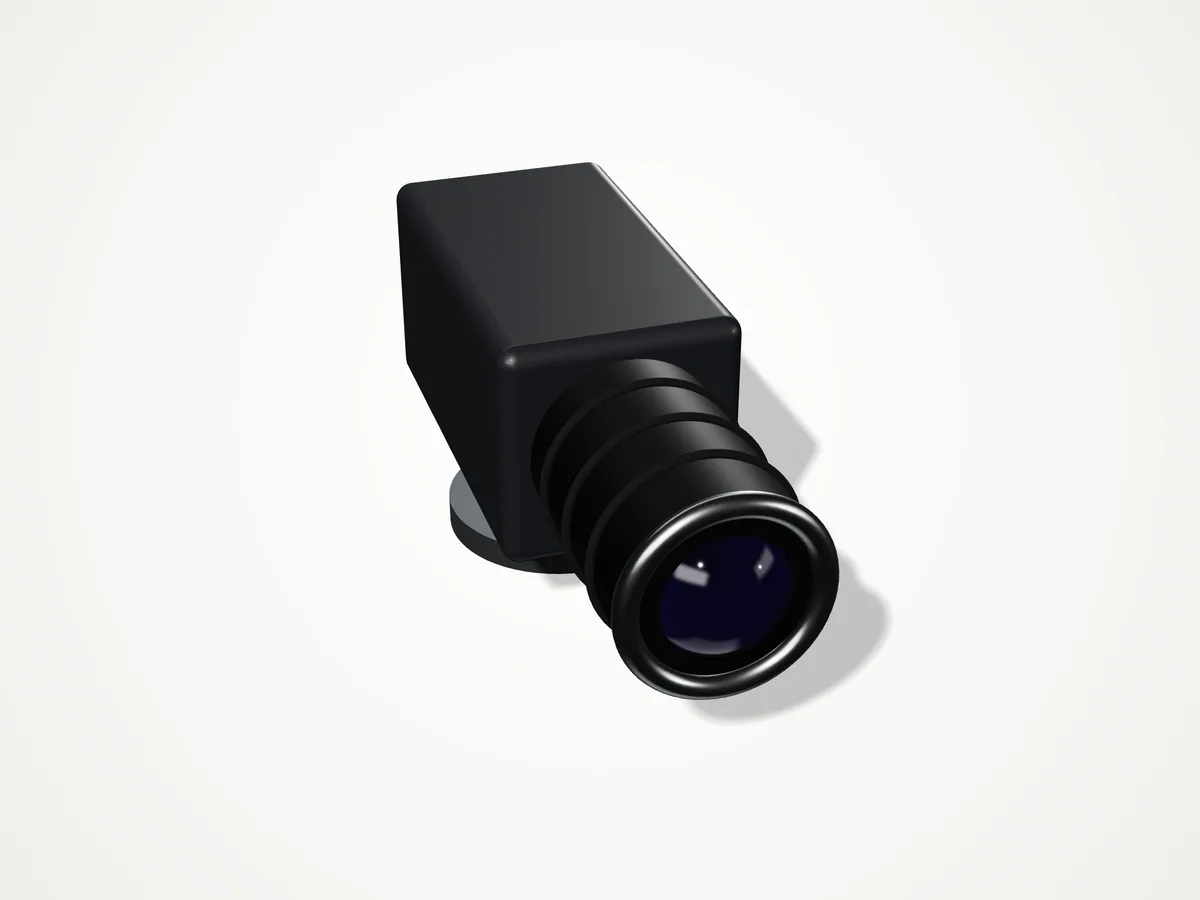

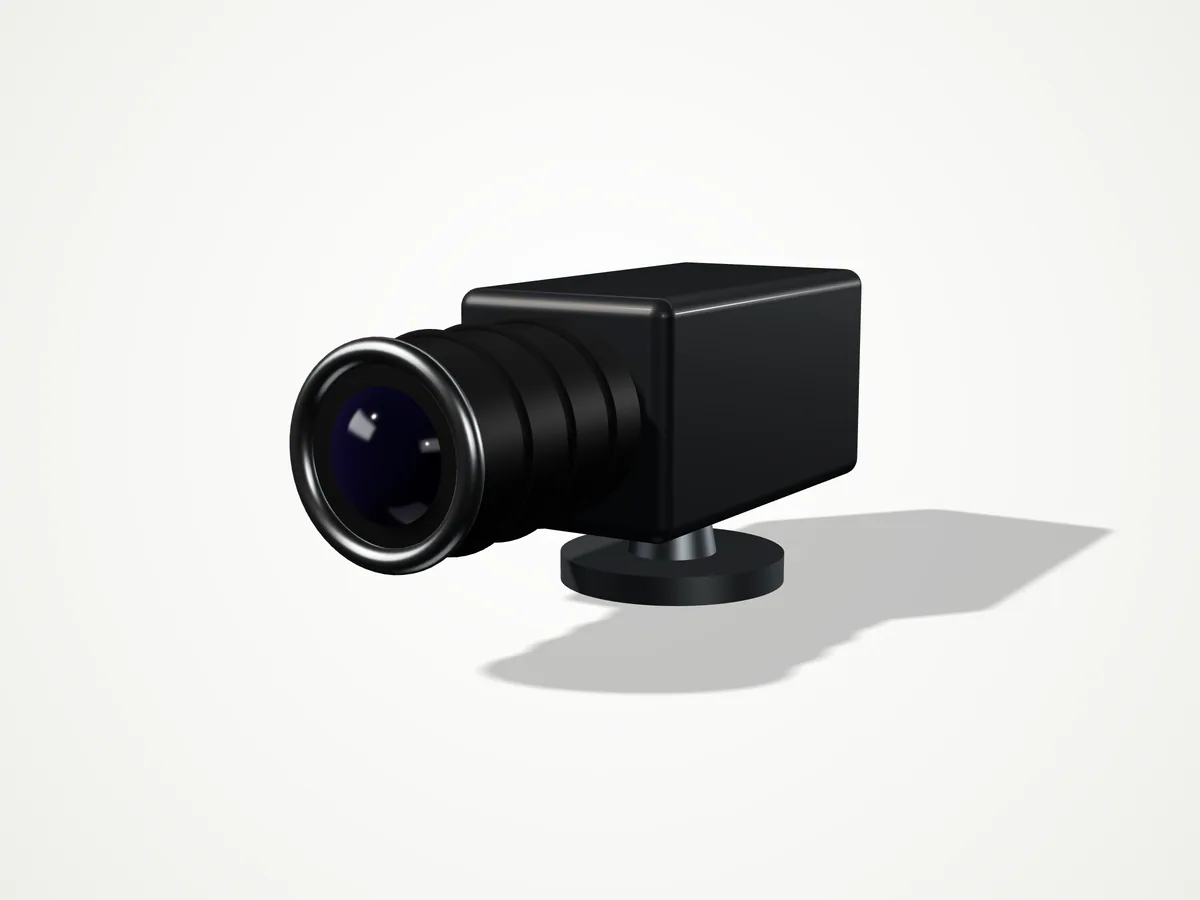

NX-8M-BX
8 MP box camera body
4K body with a 1/1.2″ sensor for low-light specialist installs such as tunnels and ports.
- Resolution 8MP
- Lens 8–32mm
- 1/1.2″ sensor
- 4K
- Plate recognition
- Industrial temperature range
Overview
How far it sees
DORI distances at the widest lens: the range at which a person can be detected, observed, recognised or identified.
- Detect
- 459 m
- Observe
- 182 m
- Recognise
- 92 m
- Identify
- 46 m
Technologies inside
-
ClearEdge
Counting, heat maps and line crossing run on the camera itself, which keeps bandwidth and server load low.
-
LumaNight
An F1.0 aperture and a back-illuminated sensor keep night footage in full colour, so a red car is still red at 2 a.m.
On-device AI
- Number plate recognition
Specifications
- Image sensor
- 1/1.2″ progressive-scan CMOS
- Max. resolution
- 3840 × 2160
- Min. illumination
- Colour: 0.0005 lux @ F1.0
- Shutter
- 1/3 s to 1/100,000 s
- WDR
- 120 dB
- Lens type
- Manual varifocal
- Focal length
- 8–32 mm
- Horizontal FOV
- 19°–68°
- Aperture
- F1.0
- Detect
- 459 m
- Observe
- 182 m
- Recognise
- 92 m
- Identify
- 46 m
- Compression
- H.265, H.265+, H.264, MJPEG (sub-stream)
- Main stream
- 20 fps @ 3840 × 2160
- Bit rate
- 32 Kbps to 16 Mbps
- Protocols
- TCP/IP, HTTPS, RTSP, NTP, 802.1X, IPv6, SNMP, TLS 1.3
- API
- Open video interface (Profiles S, G, T), Dhonaadhi SDK
- Security
- Signed firmware, secure boot, encrypted storage, audit log
- Number plate recognition
- Yes
- Power
- PoE (802.3af), 12 V DC, 24 V AC
- Operating temperature
- −40 °C to 65 °C
- Certifications
- CE, FCC, UL 62368-1, RoHS, EN 50131 (where applicable)
