Sentinel series SentinelAIClearEdgeLumaNight
NB-8M-V2812A

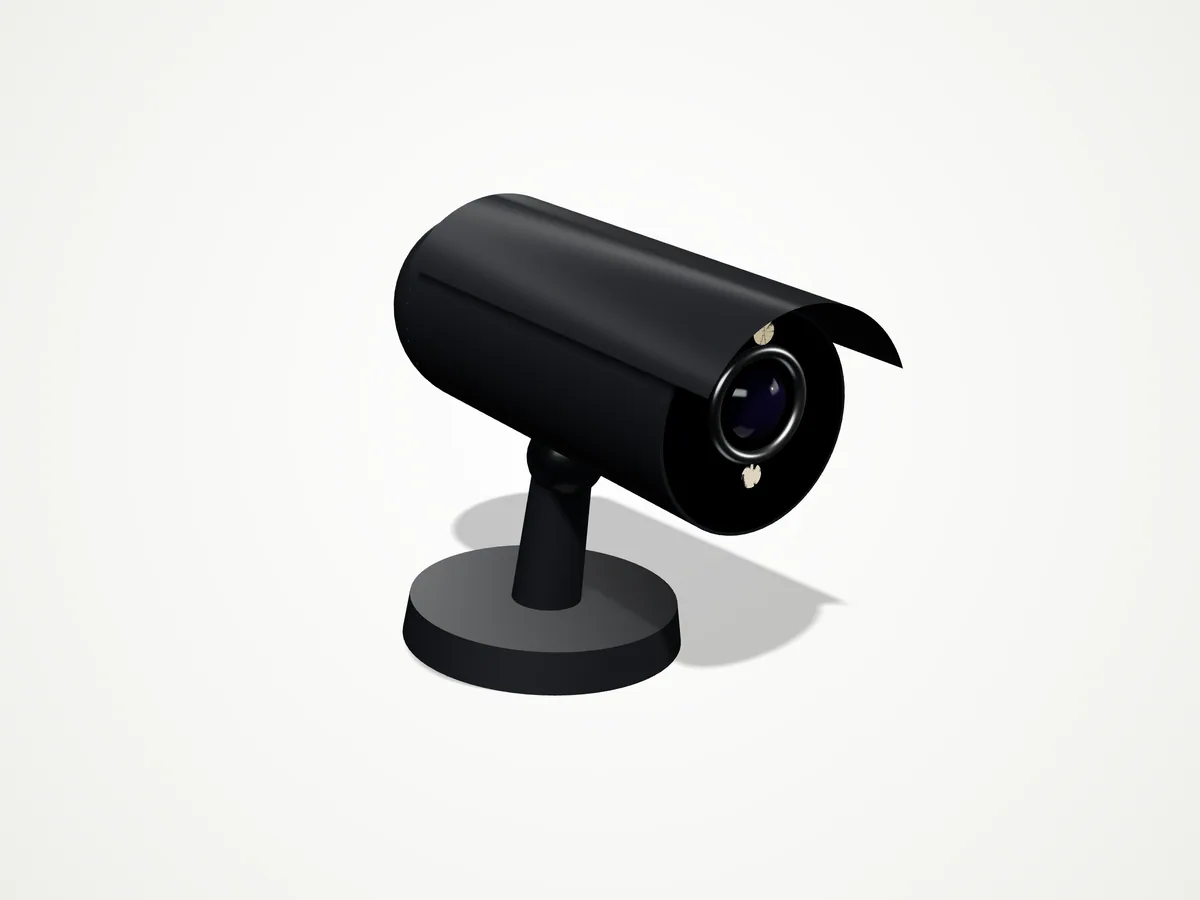

8 MP Sentinel varifocal bullet
Four deep-learning models running at once, from plate reading at the gate to hard-hat checks on site.
- Resolution 8MP
- Lens 2.8–12mm
- Light 80m
- Four concurrent AI models
- Plate recognition up to 30 km/h
- Hard-hat detection
- 80 m hybrid light
- Metadata for fast search
Overview
How far it sees
DORI distances at the widest lens: the range at which a person can be detected, observed, recognised or identified.
- Detect
- 256 m
- Observe
- 102 m
- Recognise
- 51 m
- Identify
- 26 m
Technologies inside
-
SentinelAI
Deep-learning models tell people and vehicles apart from rain, leaves and animals, so alerts mean something.
-
ClearEdge
Counting, heat maps and line crossing run on the camera itself, which keeps bandwidth and server load low.
-
LumaNight
An F1.0 aperture and a back-illuminated sensor keep night footage in full colour, so a red car is still red at 2 a.m.
On-device AI
- Perimeter protection
- Number plate recognition
- Hard-hat detection
- People counting
Specifications
- Image sensor
- 1/1.8″ progressive-scan CMOS
- Max. resolution
- 3840 × 2160
- Min. illumination
- Colour: 0.0005 lux @ F1.0
- Shutter
- 1/3 s to 1/100,000 s
- WDR
- 140 dB
- Lens type
- Motorised varifocal
- Focal length
- 2.8–12 mm
- Horizontal FOV
- 33°–104°
- Aperture
- F1.0
- Detect
- 256 m
- Observe
- 102 m
- Recognise
- 51 m
- Identify
- 26 m
- Supplemental light
- Smart hybrid (IR + white)
- Range
- Up to 80 m
- Smart light control
- Yes, anti-overexposure
- Compression
- H.265, H.265+, H.264, MJPEG (sub-stream)
- Main stream
- 20 fps @ 3840 × 2160
- Bit rate
- 32 Kbps to 16 Mbps
- Audio
- Built-in mic, Built-in speaker
- Protocols
- TCP/IP, HTTPS, RTSP, NTP, 802.1X, IPv6, SNMP, TLS 1.3
- API
- Open video interface (Profiles S, G, T), Dhonaadhi SDK
- Security
- Signed firmware, secure boot, encrypted storage, audit log
- Active deterrence
- Audio alarm, White strobe
- Perimeter protection
- Yes
- Number plate recognition
- Yes
- Hard-hat detection
- Yes
- People counting
- Yes
- Power
- PoE (802.3af), 12 V DC
- Operating temperature
- −30 °C to 60 °C
- Protection
- IP67, IK10
- Certifications
- CE, FCC, UL 62368-1, RoHS, EN 50131 (where applicable)
