Pro series ClearEdge
NB-6M-V2812

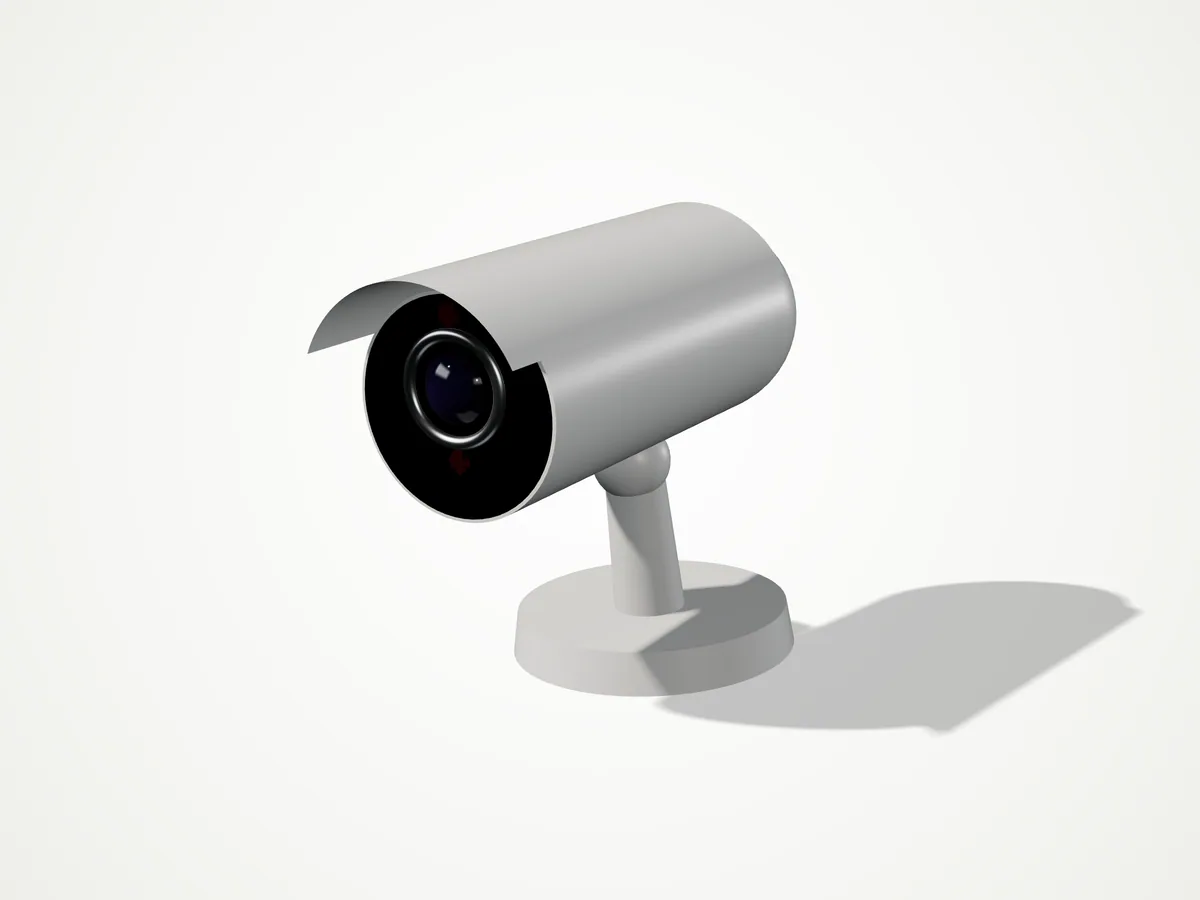

6 MP motorised varifocal bullet
Zoom and focus from the browser after installation, so one model covers a doorway or a car park.
- Resolution 6MP
- Lens 2.8–12mm
- Light 60m
- 2.8–12 mm motorised lens
- 60 m infrared
- Remote zoom and focus
- IK10 vandal-resistant
- Line counting on the camera
Overview
How far it sees
DORI distances at the widest lens: the range at which a person can be detected, observed, recognised or identified.
- Detect
- 260 m
- Observe
- 103 m
- Recognise
- 52 m
- Identify
- 26 m
Technologies inside
On-device AI
- Perimeter protection
- People counting
Specifications
- Image sensor
- 1/2.4″ progressive-scan CMOS
- Max. resolution
- 3200 × 1800
- Min. illumination
- Colour: 0.005 lux @ F1.6, B/W: 0 lux with IR
- Shutter
- 1/3 s to 1/100,000 s
- WDR
- 120 dB
- Lens type
- Motorised varifocal
- Focal length
- 2.8–12 mm
- Horizontal FOV
- 28°–93°
- Aperture
- F1.6
- Detect
- 260 m
- Observe
- 103 m
- Recognise
- 52 m
- Identify
- 26 m
- Supplemental light
- Infrared (850 nm)
- Range
- Up to 60 m
- Smart light control
- Yes, anti-overexposure
- Compression
- H.265, H.265+, H.264, MJPEG (sub-stream)
- Main stream
- 25 fps @ 3200 × 1800
- Bit rate
- 32 Kbps to 16 Mbps
- Protocols
- TCP/IP, HTTPS, RTSP, NTP, 802.1X, IPv6, SNMP, TLS 1.3
- API
- Open video interface (Profiles S, G, T), Dhonaadhi SDK
- Security
- Signed firmware, secure boot, encrypted storage, audit log
- Perimeter protection
- Yes
- People counting
- Yes
- Power
- PoE (802.3af), 12 V DC
- Operating temperature
- −30 °C to 60 °C
- Protection
- IP67, IK10
- Certifications
- CE, FCC, UL 62368-1, RoHS, EN 50131 (where applicable)
